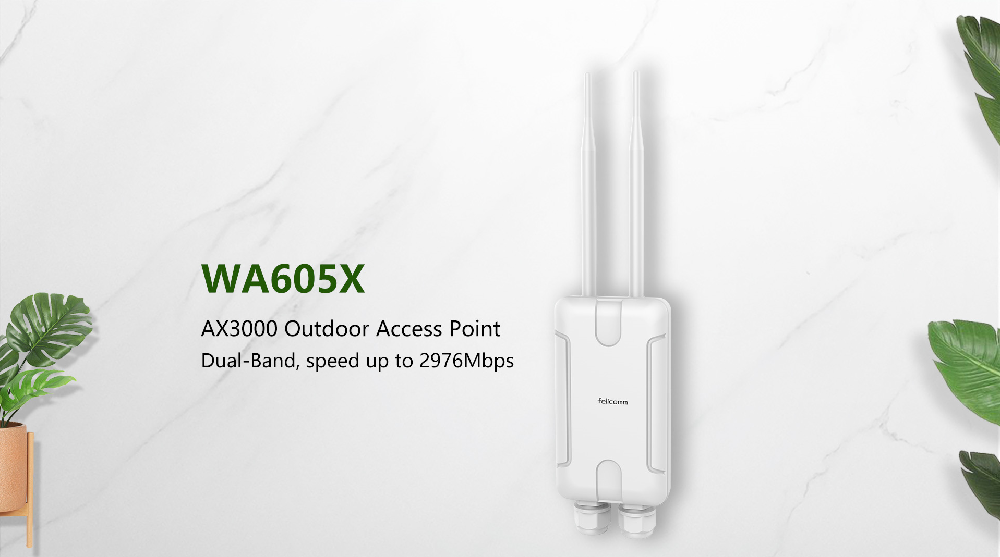

WA605X
AX3000 Outdoor Access Point
WIFI 6 dual-band wireless access point, outdoor application, ultra-fast speed up to 2976Mbps, external Omni MU-MIMO antennas configured, and FEM built in 2.4GHz & 5.8GHz, 2.5G SFP detachable port selectable.
Main Features:
●WIFI 6 / 802.11ax standards with Qualcomm ARM Quad-Core CPU.
●Simultaneously Dual Band, 574Mbps on 2.4GHz and 2402 Mbps on 5GHz, ultra-fast speed up to 2976Mbps transmission rate.
●External Omni MU-MIMO antennas configured and FEM built in 2.4GHz & 5.8GHz, greatly expand WIFI coverage and highly
improve data transceiver rate.
●2.5G SFP port selectable that enables lightning-fast user experience possible and very convenient for wire connect device.
●802.3af/at POE support, no need adapter, Pole Mount or Wall Mount, fit for outdoor deployment.

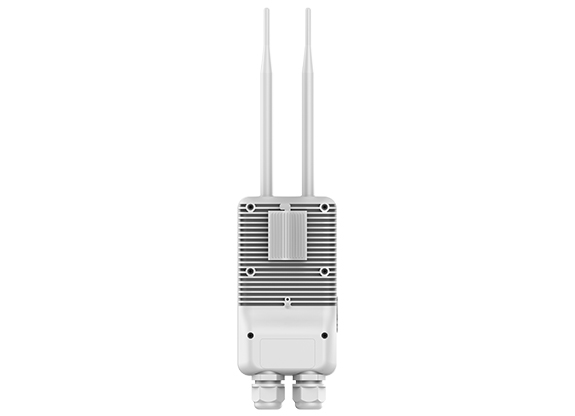

●Specially designed weatherproof enclosure for outdoor environment.
Lightning-fast speed
WA605X outdoor access point uses latest WIFI 6/802.11ax technology, dual band simultaneously provide up to 2976Mbps.
While FEM module configured in WA605X, highly improved data transmit rate and receive rate.
High efficiency
1024QAM and MU-MIMO technology featured in WIFI 6 standard, enable more devices connectable, WA605X can make more
than 120 devices to be connected at the same time.
Interference resistance
Outdoor access point WA605X transmit power is adjustable, even more access points deployed in dense environment,
FELICOMM access points can resist interference with each other by lower its transmit power.

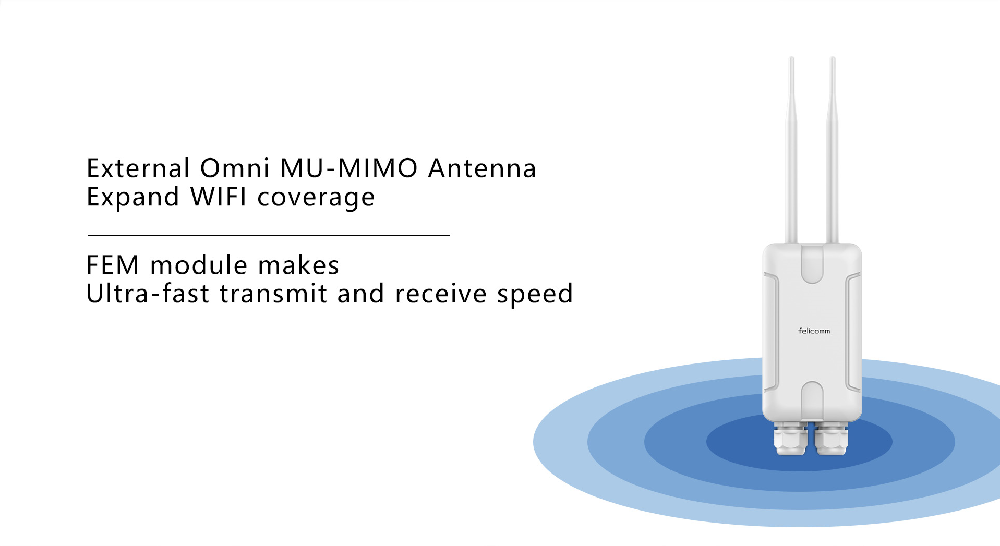

Wide range WIFI coverage
Thanks to 2 external Omni MU-MIMO antennas and FEM module, WA605X could make wider WIFI coverage with stable beam
connectivity.

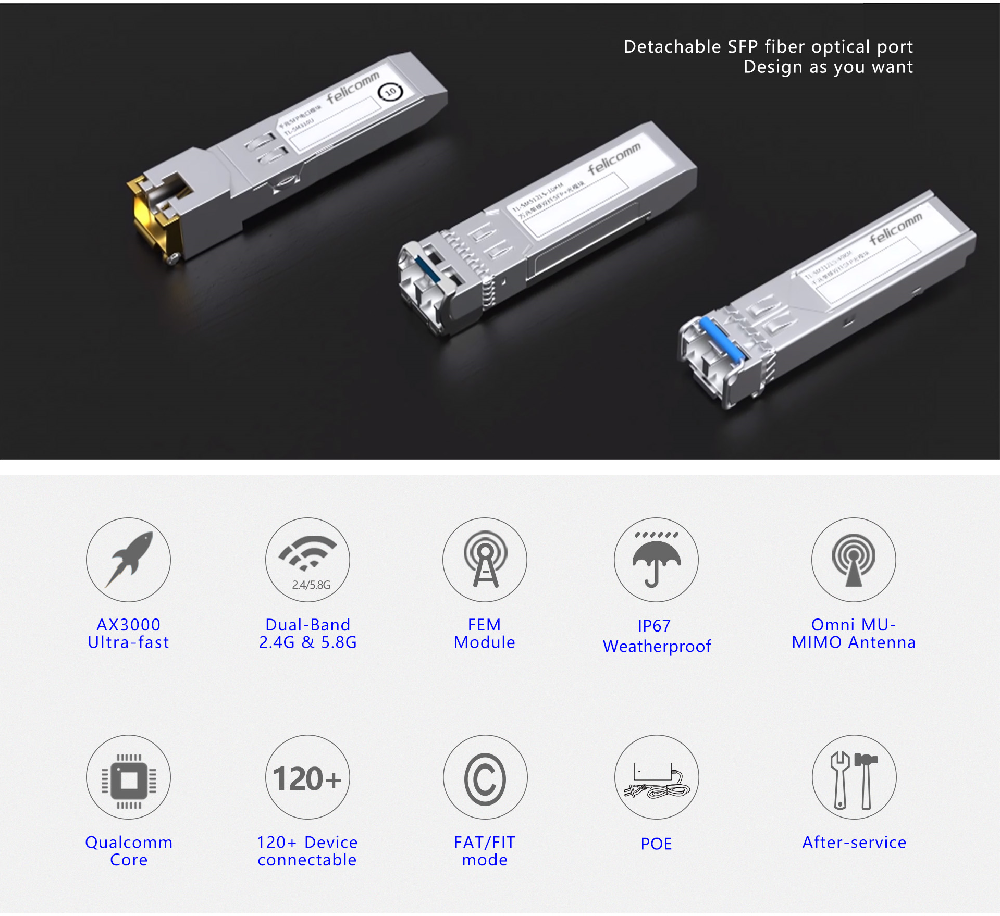

SFP fiber optical port selectable
WA605X access point can match FELICOMM detachable SFP port, you can select SFP port and configure in WA605X
anytime as you want.
Hardware
Wireless Standards | Wi-Fi 6: 5.8 GHzIEEE 802.11ax/ac/n/a 2.4 GHz IEEE 802.11ax/n/b/g | |||
Signal Rate | AX3000: 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) | |||
Antenna | 5GHz 5 dBi, External Omni Waterproof 2.4GHz 4.3 dBi, External Omni Waterproof | |||
Max EIRP | 5 GHz 32 dBm 2.4 GHz 31.3 dBm * EIRP may be limited by country regulations | |||
SOC | 1.0 GHz Quad-Core CPU | |||
RAM | 4Gb DDR3 | |||
FLASH | 1Gb NAND FLASH | |||
Interface | 1x Gigabit Ethernet (RJ-45) Port (supports IEEE 802.3af/at PoE) 1x Gigabit(SFP) | |||
LEDs | 1x Power Light 1x ETH Light 1x SFP Light 3x WiFi Signal Lights | |||
Dimensions (W x D x H) | 216 x 102 x 42 mm (without antenna & mounting kit) 381 x 102 x 62 mm (with antenna & mounting kit) | |||
Environment | Operating Temperature:-30℃ ~ 70℃ Storage Temperature:-40℃ ~ 70℃ Operating Humidity:10% ~ 90%RH non-condensing Storage Humidity:5% ~ 90%RH non-condensing | |||
Protection Grade | IP67 | |||
Power Consumption | ≤15W | |||
Power Supply | 48V 350mA 802.af/at POE | |||
Button | Reset | |||
Package Contents | 1 WA605X 1 Passive PoE Adapter 1 User Guide 1 Warranty Card 1 CAT 5E |
Software
Operating Mode | Access Point DHCP Router | |||
Number of Access User Device | 128 | |||
Networking Mode | WiFi Hotspot DHCP Router | |||
Centralized Management | WEB Management WAG Wireless Controller E Cloud-Based Controller | |||
Wireless Security | WPA、WPA2、WPA3 Encryption | |||
System Upgrade | WEB Local Upgrade, Centralized Online Upgrade |
